Wobblesticks

  • The Original: Use the original and ongoing enhanced Wobblesticks.
  • Swiss Precision: Guaranteed quality and reliability for critical applications.
  • Tactile Feedback: Provides exceptional hand-like manipulation with responsive control.
  • Degrees of Freedom: Offers linear, rotary, and angular motion with force-free flexibility.

  • What are Wobblesticks?

    Ferrovac Wobblesticks are Swiss-made, magnetically coupled manipulators with bellows, designed for precise linear, rotary, and angular motion within ultra-high vacuum (UHV) systems. The magnetic coupling allows for exact positioning and rotation, while the bellows enable flexible angular deflection. This design ensures shaft movements are unaffected by pressure differences, allowing for manipulation with minimal force. The all-metal sealing minimizes environmental impact on sensitive applications.

    Why Choose Ferrovac Wobblesticks?

    Eco-Friendly and Cost-Effective: Reduce environmental impact and long-term costs with a maintenance-free lifespan of up to 10 years and readily available spare parts.

    Precision and Reliability: Achieve smooth, controlled manipulation in UHV systems, unaffected by pressure differences.

    Versatile Functionality: Adapt to diverse scientific and industrial tasks with multiple configurations and accessories.

    Typical Applications

    Ferrovac Wobblesticks are available in various configurations to meet a wide range of applications, such as:

    • Sample Handling: Precise transportation of samples within the vacuum chamber.
    • Screwdriver Functionality: Tightening or loosening screws and other mechanical tasks.
    • Shutter/Shield Actuation: Operating in-vacuum shutters or shields.
    • Sample Preparation: Tasks like scraping, cleaving, or micromachining.
    • And much more…

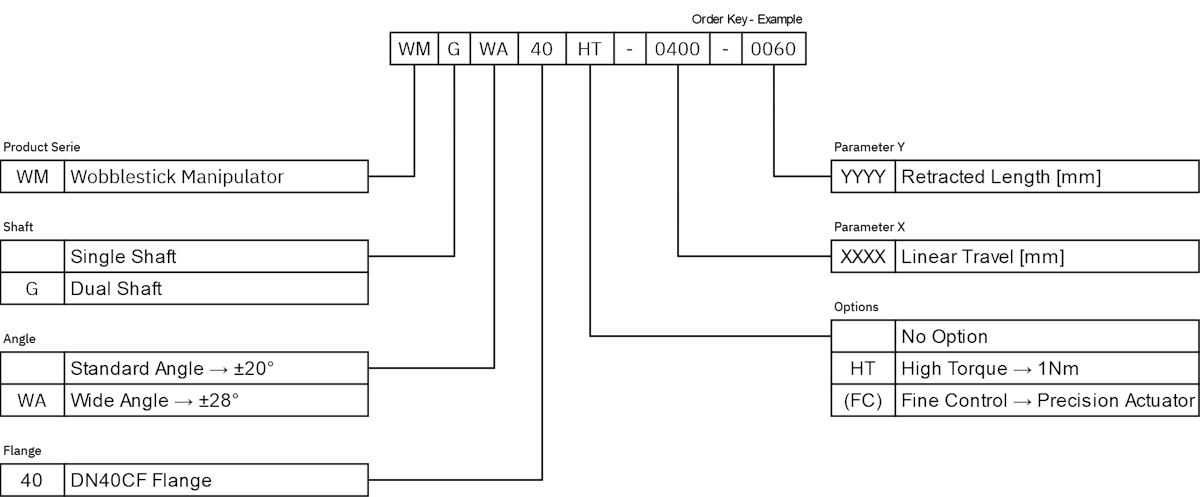

    Product Code:

    Viewing enlarged image:

    ↪ Shaft:

    Check out the related video tutorial below.

    Single-Shaft Wobblestick: enables rotational and linear motion. Designed for in-axis sample handling with end-effectors (e.g., GRABSHOM gripping tools) or for an in-vacuum screwdriver.

    Dual-Shaft Wobblestick: Optimizes sample handling with mechanical end-effectors (e.g., PGWMS(OM) pincers).

    ↪ Angular deflection:

    Enhanced workspace provided by larger bellows stacks for increased angular deflection.

    ↪ Flange:

    All Ferrovac Wobblesticks feature a DN40CF (Conflat Flange) for maximum UHV compatibility, sealed with CF40 copper gaskets (UHV) or Viton/rubber gaskets (HV).

    ↪ Retracted Length [mm]

    Indicates the minimum shaft extension from the DN40CF flange into the vacuum chamber when fully retracted.

    ↪ Linear Travel [mm]

    Defines the maximum shaft travel distance, determining the maximum extension into the vacuum chamber when added to the retracted length.

    ↪ Options:

    HT Option (High Torque): (Single-shaft only) Delivers increased force for demanding manipulations and secure sample holder fastening, maintaining precision.

    (FC) Option (Fine Control): (Dual-shaft only) Replaces the standard handle with a High Precision Rotation Actuator, enabling finer dual-shaft operation for high-accuracy tasks.
