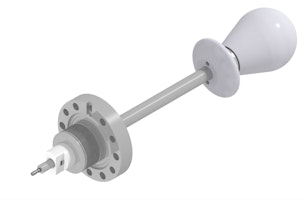

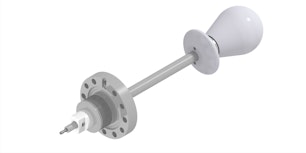

Dual Shaft Wobblestick

From

4’940.00 CHF

Magnetically coupled, linear & rotary dual-shaft manipulator capable of free angular deflection.

Standard Lengths:

All standard lengths are available for direct purchase on the UHV store online shop.

Product Code	Linear Travel X	Retracted Length Y	Price
WMG40-0100-0063	100mm	63mm	CHF 4940
WMG40-0150-0063	150mm	63mm	CHF 4990
WMG40-0200-0063	200mm	63mm	CHF 5040
WMG40-0250-0063	250mm	63mm	CHF 5090
WMG40-0300-0063	300mm	63mm	CHF 5140
WMG40-0350-0063	350mm	63mm	CHF 5190
WMG40-0400-0063	400mm	63mm	CHF 5240
WMG40-0450-0063	450mm	63mm	CHF 5290
WMG40-0500-0063	500mm	63mm	CHF 5340
WMG40-0600-0063	600mm	63mm	CHF 5390
WMG40-0700-0063	700mm	63mm	CHF 5440

Customization Range:

Product Code	Linear Travel X	Retracted Length Y	Price
WMG40-XXXX-YYYY	min. 50mm / max. 700mm	min. 63mm / max. 200mm	CHF 5940

- Dual-shaft design enables pincer grip operation
- Compatible with various pincer types to accommodate different sample holders
- Customizable stroke and retracted length to fit specific applications
The WMG40 Dual Shaft Wobblestick Manipulator is designed for precise sample handling in ultra-high vacuum (UHV) environments, featuring an integrated pincer grip mechanism. By slightly pressing the two halves of the control knob together, users can open and close the pincer, enabling secure manipulation of sample holders. A variety of pincers are available, ensuring compatibility with different sample types.
The WMG40 offers full rotational motion along with angular deflection of ±20°, providing exceptional maneuverability and control. Constructed from fully UHV-compatible materials, it ensures reliable operation in extreme vacuum conditions and is bakeable up to 200°C for high-temperature applications.
- Mounting Flange: DN40CF
- Angular Deflection: ±20° (requires a wobblestick flange for full range)
- Linear Force: 30N
- Torque: 0.4Nm
- Bakeout Temperature: Max. 200°C
- Pressure Range: 1E-11 mbar to 1000 mbar

Pincer
