Single Shaft Wobblestick
3’350.00 CHF

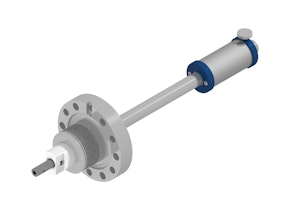

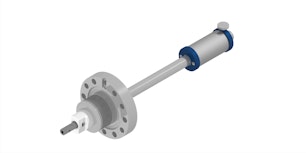

Magnetically coupled linear & rotary manipulator capable of free angular deflection.
Standard Lengths:
All standard lengths are available for direct purchase on the UHV store online shop.
Product Code Linear Travel X Retracted Length Y Price WM40-0100-0060 100 mm 60 mm CHF 3350 WM40-0150-0060 150 mm 60 mm CHF 3400 WM40-0200-0060 200 mm 60 mm CHF 3450 WM40-0250-0060 250 mm 60 mm CHF 3500 WM40-0300-0060 300 mm 60 mm CHF 3550 WM40-0350-0060 350 mm 60 mm CHF 3600 WM40-0400-0060 400 mm 60 mm CHF 3650 WM40-0450-0060 450 mm 60 mm CHF 3700 WM40-0500-0060 500 mm 60 mm CHF 3750 WM40-0600-0060 600 mm 60 mm CHF 3800 WM40-0700-0060 700 mm 60 mm CHF 3850 Customization Range:
Product Code Linear Travel X Retracted Length Y Price WM40-XXXX-YYYY min. 50mm / max. 750mm min. 60mm / max. 200mm (standard 60mm) CHF 4350 Connect with Ferrovac sales for expert advice.
Contact Sales- Magnetic actuation system for smooth, controlled movement.
- Nearly force-free shaft guidance for precise and delicate handling.
- Linear, angular, and continuous rotational motion for maximum versatility.
The WM40 Magnetically Driven Wobblestick Manipulator is designed for delicate and precise handling within ultra-high vacuum (UHV) systems. Its magnetic actuation system allows smooth and controlled movement, unaffected by pressure differences, enabling nearly force-free shaft guidance.
With linear, angular, and continuous rotational motion, the WM40 provides exceptional versatility. Additionally, it can function as a screwdriver, securely locking sample holders in place. For higher torque applications, the High Torque version doubles the torque to 1Nm for improved torsional performance.
- Mounting Flange: DN40CF
- Angular Deflection: ±20° (if mounted to a wobblestick flange)
- Linear Force: 30N
- Torque: 0.5Nm
- Bakeout Temperature: Max. 200°C
- Pressure range: 1E-11 mbar to 1000 mbar
