WMG40(FC)-XXXX-YYYY

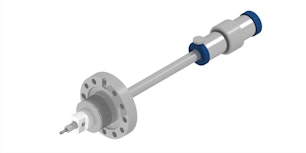

Dual Shaft Wobblestick - Fine Control
6’100.00 CHF
Linear & rotary dual-shaft manipulator capable of free angular deflection, with precision magnetic couplings.
Standard Lengths:
Product Code Linear Travel X Retracted Length Y Price WMG40(FC)-0100-0063 100mm 63mm CHF 6100 WMG40(FC)-0150-0063 150mm 63mm CHF 6100 WMG40(FC)-0200-0063 200mm 63mm CHF 6100 WMG40(FC)-0250-0063 250mm 63mm CHF 6100 WMG40(FC)0300-0063 300mm 63mm CHF 6100 Customization Range:
Product Code Linear Travel X Retracted Length Y Price WMG40(FC)-XXXX-YYYY min. 50mm / max. 700mm min. 63mm / max. 200mm (standard 60mm) CHF 6100 Connect with Ferrovac sales for expert advice.
Contact- Fine adjuster magnetic coupling for precise control of pincer grip
- Thumbscrew-operated pincer for gradual opening and closing
- Fully rotatable dual shaft design for smooth sample handling
The WMG40(FC) High Precision Dual Shaft Wobblestick Manipulator is designed for precise sample handling in ultra-high vacuum (UHV) environments, featuring a fine adjuster magnetic coupling for enhanced control of the pincer grip. Unlike standard dual shaft wobblesticks, the WMG40(FC) enables finer adjustments by using a thumbscrew mechanism to precisely open and close the pincer.
With full rotational motion and an angular deflection of ±20°, this model ensures smooth and controlled sample manipulation. Constructed from fully UHV-compatible materials, it provides reliable performance in extreme vacuum conditions and is bakeable up to 200°C.
- Mounting Flange: DN40CF
- Angular Deflection: ±20° (requires a wobblestick flange for full range)
- Linear Force: 30N
- Torque: 0.4Nm
- Bakeout Temperature: Max. 200°C
- Pressure Range: 1E-11 mbar to 1000 mbar
