WM40HT-XXX-YYYY

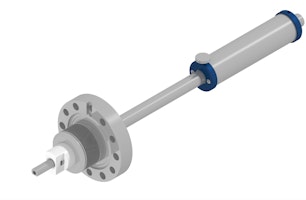

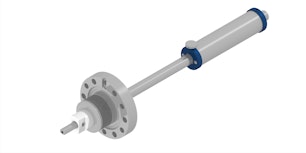

Single Shaft Wobblestick - High Torque

From

3’980.00 CHF

Heavy-duty, magnetically coupled linear & rotary manipulator capable of free angular deflection.

  • Standard Lengths:

    All standard lengths are available for direct purchase on the UHV store online shop.

    Product CodeLinear Travel XRetracted Length YPrice
    WM40HT-0100-0060100mm60mmCHF 3980
    WM40HT-0150-0060150mm60mmCHF 4030
    WM40HT-0200-0060200mm60mmCHF 4080
    WM40HT-0250-0060250mm60mmCHF 4130
    WM40HT-0300-0060300mm60mmCHF 4180
    WM40HT-0350-0060350mm60mmCHF 4230
    WM40HT-0400-0060400mm60mmCHF 4280
    WM40HT-0450-0060450mm60mmCHF 4330
    WM40HT-0500-0060500mm60mmCHF 4380
    WM40HT-0600-0060600mm60mmCHF 4430
    WM40HT-0700-0060700mm60mmCHF 4480

    Customization Range:

    Product CodeLinear Travel XRetracted Length YPrice
    WM40HT-XXXX-YYYYmin. 50mm / max. 700mmmin. 60mm / max. 200mm (standard 60mm)CHF 4980

    Connect with Ferrovac sales for expert advice.

    Contact

    • High torque (1Nm) for enhanced torsional applications
    • Increased linear force (60N) for heavy-duty applications
    • Linear, angular, and continuous rotational motion for precision handling

    The WM40HT High Torque Wobblestick Manipulator is engineered for demanding UHV applications, delivering increased torque of 1Nm and a linear force of 60N. Designed for high-torque tasks, it is ideal for use as a UHV screwdriver, enabling secure sample locking, engaging thermal links, and closing electrical contacts with precision.

    With linear, angular, and continuous rotational motion, the WM40HT provides exceptional control and versatility in delicate handling and positioning tasks. Constructed from fully UHV-compatible materials, it ensures reliable performance in extreme vacuum conditions and is bakeable up to 200°C for high-temperature applications.

    • Mounting Flange: DN40CF
    • Angular Deflection: ±20° (requires a Wobblestick flange for full range)
    • Linear Force: 60N
    • Torque: 1Nm
    • Bakeout Temperature: Max. 200°C
    • Pressure Range: 1E-11 mbar to 1000 mbar
