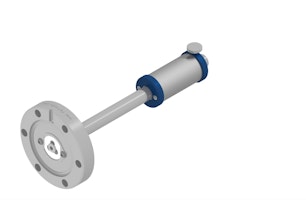

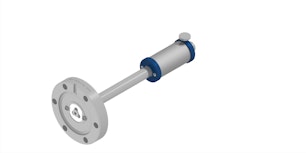

Sample Transporter (DN40CF), Zero Retracted Length

From

2’500.00 CHF

Linear and rotary motion manipulator with reduced retracted length.

Product Code	Linear Travel X	Retracted Length Y	Price
MD40(Y0)-0050-0001	50mm	01mm	2800 CHF
MD40(Y0)-0080-0001	80mm	01mm	2500 CHF
MD40(Y0)-0100-0001	100mm	01mm	2800 CHF
MD40(Y0)-0200-0001	200mm	01mm	2800CHF
MD40(Y0)-0300-0001	300mm	01mm	2800CHF
MD40(Y0)-0400-0001	400mm	01mm	2800 CHF
MD40(Y0)-0500-0001	500mm	01mm	2800 CHF

Customization Range:

Product Code	Linear Travel X	Retracted Length Y	Price
MD40(Y0)-XXXX-0001	min. 50mm / max. 700mm	01mm	2800 CHF

Connect with Ferrovac sales for expert advice.

This Linear/Rotary Feedthrough with Zero Retracted Length is designed for precise and compact handling of sample plates within UHV environments. It's ideal for use with RECOMSTACK sample storage systems in NexGeneration UHV Suitcases.
An additional tube support like a single-sided tube supprot (Product code: TSMDH) is heavily recommended.
Adjustable Stop Ring: Enables precise positioning and repeatability.
Lockable Outer Magnet: Ensures secure sample handling.
- Mounting Flange: DN40CF (2.75" O.D.)
- Linear Force: 30N
- Torque: 0.5Nm (1Nm with HT option)
- Bakeout Temperature: 200 °C max.
- Pressure Range: 1E-11mbar to 1000mbar
- Max. Height of Optional RECOMSTACKY0 on NexGeneration UHV Suitcase: 65mm
