MD40-XXXX-YYYY

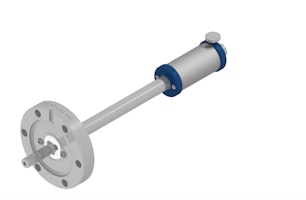

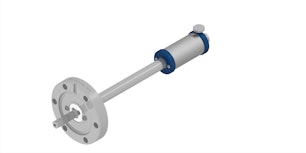

Sample Transporter (DN40CF)

From

2’000.00 CHF

Linear and rotary motion manipulator.

Questions? Connect with an expertBuy at UHV store

  • Standard Lengths:

    Product CodeLinear Travel XRetracted Length YPrice
    MD40-0100-0030100mm30mm2000 CHF
    MD40-0200-0030200mm30mm2050 CHF
    MD40-0300-0030300mm30mm2100 CHF
    MD40-0400-0030400mm30mm2150 CHF
    MD40-0500-0030500mm30mm2200 CHF
    MD40-0600-0030600mm30mm2250 CHF
    MD40-0700-0030700mm30mm2300 CHF

    Customization Range:

    Product CodeLinear Travel XRetracted Length YPrice
    MD40-XXXX-YYYYmin. 50mm / max. 700mmmin. 10mm / max. 250mm; standard 30mm3000 CHF

    Connect with Ferrovac sales for expert advice.

    Contact

  • The MD40 linear/rotary feedthrough is specifically designed for precise and compact sample handling over short to intermediate distances in UHV environments. With a maximum linear travel range of 500mm, it excels in applications where both linear and rotary motion are required within a confined space.

    Dual Motion: Provides both linear and rotary movement for flexible sample handling.

    Adjustable Stop Ring: Allows for precise positioning and repeatability.

    Lockable Outer Magnet: Ensures secure sample handling.

    Customizable: Tailor stroke length (50-700mm) and retracted length (10-250mm) to your specific needs.

    • Mounting Flange: DN40CF (2.75" O.D.)
    • Linear Force: 30N
    • Torque: 0.5Nm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar

Additional Components and Supports

Example End Effectors
