MD40HT-XXXX-YYYY

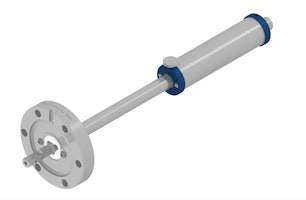

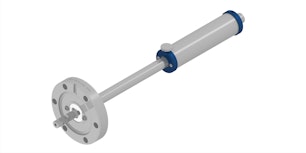

High-Torque Sample Transporter (DN40CF)

From

3’900.00 CHF

Linear and rotary motion manipulator for high-torque applications.

Questions? Connect with an expert

  • Standard Lengths:

    Product CodeLinear Travel XRetracted Length YPrice
    MD40HT-0100-0030100mm30mm3900 CHF
    MD40HT-0200-0030200mm30mm3900 CHF
    MD40HT-0300-0030300mm30mm3900 CHF
    MD40HT-0400-0030400mm30mm3900 CHF
    MD40HT-0500-0030500mm30mm3900 CHF

    Customization Range:

    Product CodeLinear Travel XRetracted Length YPrice
    MD40HT-XXXX-YYYYmin. 50mm / max. 700mmmin. 10mm / max. 250mm; standard 30mm3900 CHF

    Connect with Ferrovac sales for expert advice.

    Contact

  • The High-Torque Linear/Rotary Feedthrough is specifically designed for applications requiring high force coupling within an Ultra High Vacuum environment. It functions much like a powerful "screwdriver" inside your vacuum chamber, excelling at tasks such as precisely engaging and disengaging thermal links, where both linear and rotary motion are critical.

    • Mounting Flange: DN40CF (2.75" O.D.)
    • Linear Force: 60N
    • Torque: 1Nm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar

Additional Components and Supports

Example End Effectors
