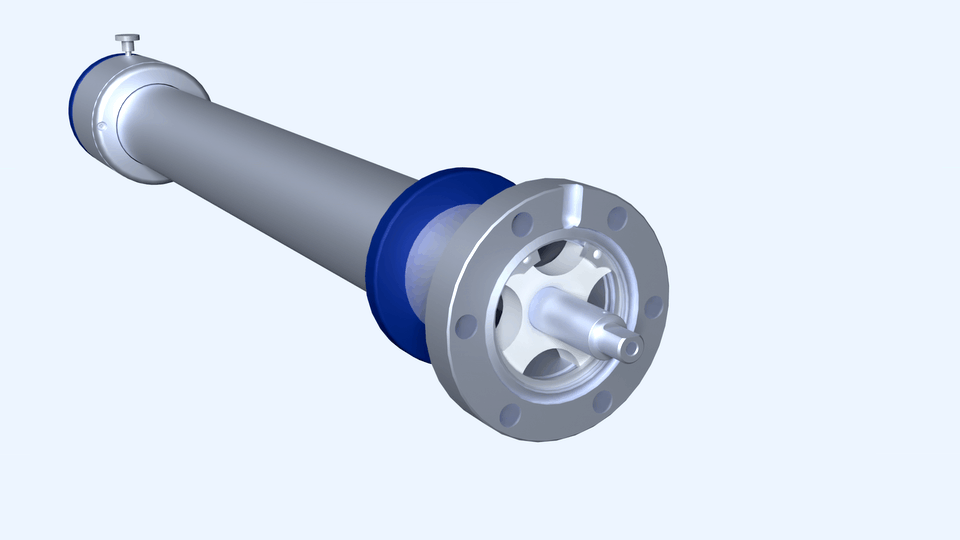

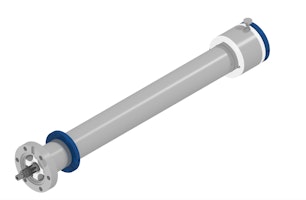

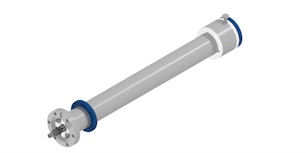

Heavy-Duty Sample Transporter (DN40CF)

From

3’500.00 CHF

Sturdy, long range manipulator for sample handling.

Questions? Connect with an expertBuy at UHV store

  • Standard Lengths:

    Product CodeLinear Travel XRetracted Length YPrice
    RM40-0500-0030500mm30mm3500 CHF
    RM40-0750-0030750mm30mm3650 CHF
    RM40-1000-00301000mm30mm3800 CHF
    RM40-1250-00301250mm30mm4050 CHF

    Customization Range:

    Product CodeLinear Travel XRetracted Length YPrice
    RM40-XXXX-YYYYmin. 50mm / max. 1250mmmin. 10mm / max. 200mm; standard 30mm4500 CHF

    Connect with Ferrovac sales for expert advice.

    Contact

  • The RM40 is a simple, reliable, and all-metal sealed transfer rod designed for transferring samples between UHV chambers, especially over extended distances or with heavier loads. Its robust construction and smooth operation make it ideal for a wide range of research and production environments.

    Manipulator Motions:

    • Linear travel
    • Rod rotation

    Viewing enlarged image:

    • Mounting Flange: DN40CF (2.75" O.D.)
    • Linear Force: ~70N
    • Torque: ~5Nm
    • Bakeout Temperature: 200 °C max.
    • Pressure Range: 1E-11mbar to 1000mbar
