HSASOM40(EBMD)-XXXX-YYYY-ZZZZ

E-Beam Heating Station for Flag Style Plates with Linear Travel & Rotation

From

16’980.00 CHF

Fully configured, ready-to-use electron bombardement heating stage with motion capabilities.

Questions? Connect with an expert

  • This heating stage features a fully customizable manipulator, as well as a sample plate receiver with customizable orientation. See technical drawing (2D) for orientation details.

    Product CodeLinear Travel XRetracted Length YReceiver Orientation Z
    HSASOM40(EBMD)-XXXX-YYYY-0001min. 50mm / max. 450mm; standard 100mmmin. 156mm / max. 400mm; standard 160mmOrientation 01 (flag perpendicular to axis)
    HSASOM40(EBMD)-XXXX-YYYY-0002min. 50mm / max. 450mm; standard 100mmmin. 156mm / max. 400mm; standard 160mmOrientation 02 (flag perpendicular to axis, straight)
    HSASOM40(EBMD)-XXXX-YYYY-0003min. 50mm / max. 450mm; standard 100mmmin. 156mm / max. 400mm; standard 160mmOrientation 03 (flag in-line with axis)

    If you need assistance with identifying the right choice for your application, connect with Ferrovac Sales for expert advice.

    Contact

    • Integrated Sample Transporter: Enables precise sample positioning and manipulation.
    • Ultra-High Temperature Capability: Achieves temperatures up to 2000°C.*
    • E-Beam Heating Technology: Provides rapid and focused heating.

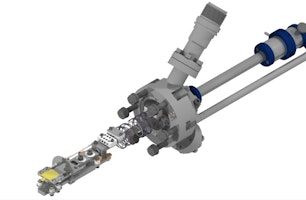

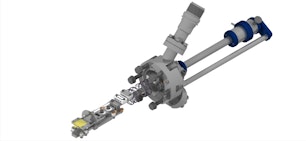

    The HSASOM40(EBMD) Heating Station is a fully configured UHV solution designed for fast heating of flag style sample plates to ultra-high temperatures. This assembly integrates an E-Beam sample heating unit, tailored for flag style sample holders, with a Sample Transporter (MD16).

    The entire heating station comes pre-mounted on a DN40CF (2.75") flange, including all necessary wiring and electrical feedthroughs, providing a ready-to-use system.

    It enables rapid and precise sample heating up to 2000°C, making it ideal for advanced material processing and surface science applications.

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.

    • Mounting Flange: DN40CF (2.75")
    • Distance from Flange Surface to Sample Plate Center: Customizable, see Product Configuration above.

    • Mounted EB Sample Plate Receiver: Electron Bombardement Heater Unit
      • Receiver Orientation Options: See Product Configuration above.
      • Temperature Range: RT ~ 2000°C*
    • Thermocouple: Not included in the standard version.
      • Thermocouple placement would require physical and electrical contact with the sample plate.
      • When using sample bias voltages, thermocouple connection is only recommended with suitable measuring devices that can compensate for the bias voltage.

    • Compatible Sample Plates: Flag Style Sample Plates, Not included
    • Linear/Rotary Feedthrough: Sample Transporter (MD16) with Support (TSMDH)
    • Electrical Feedthroughs:
      • 4-Pin MS12 Type, CF16:
        • Air-Side Connector: Included (No Cable)
        • Pin Material: Molybdenum
        • Maximum Voltage: 12kV
      • 1-Pin SHV Type, CF16:
        • Air-Side Connector: Included (No Cable)
        • Maximum Voltage: 5kV

    • Power Supply: Not included
    • Controller: Not included
    • Packaging: Included

    *Note: Number based on internal tests. Actual max. expected temperature heavily depends on system set-up.
