MDG40-XXXX-YYYY

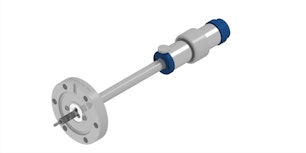

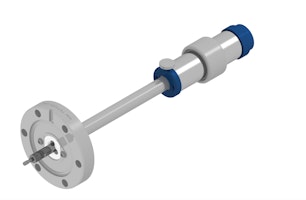

Dual-Shaft Sample Transporter (DN40CF)
From
5’000.00 CHF
Dual-shaft manipulator for linear and rotary motion.
Standard Lengths:
Product Code Linear Travel X Retracted Length Y Price MDG40-0100-0030 100mm 30mm 5000 CHF MDG40-0150-0030 150mm 30mm 5000 CHF MDG40-0200-0030 200mm 30mm 5000 CHF MDG40-0250-0030 250mm 30mm 5000 CHF MDG40-0300-0030 300mm 30mm 5000 CHF Customization Range:
Product Code Linear Travel X Retracted Length Y Price MDG40-XXXX-YYYY min. 50mm / max. 650mm min. 22mm / max. 200mm, standard 30mm 5000 CHF Connect with Ferrovac sales for expert advice.
ContactThis dual-shaft linear/rotary feedthrough is designed for use with pincer-like end effectors in applications with short to intermediate distances within UHV environments.
Reduced clearance pincers are recommended to enable easier enaging of the sample holders with the target receivers.Increased Funtionality: Enables operation of pincers and similar end effectors, while keeping both linear and rotary movement capabilities.
Adjustable Stop Ring: Allows for precise positioning and repeatability.
Lockable Outer Magnet: Ensures secure sample handling.
- Mounting Flange: DN40CF (2.75" O.D.)
- Linear Force: 23N
- Torque: 0.4Nm
- Bakeout Temperature: 200 °C max.
- Pressure Range: 1E-11mbar to 1000mbar
- Compatibility: Pincers and similar end effectors (Reduced clearance pincers recommended)
